Spring Updates: vexide 0.7.0, Auton Selectors, Docs & Ecosystem


vexide logo next to two wireframe models.

Hi everyone, we’re excited to announce some new releases in vexide! In the last few months, a large amount of our focus has gone towards stabilizing, documenting, and cleaning up existing APIs, as well as working on libraries separate from vexide itself to promote our growing ecosystem of packages.

For more information on what vexide is and why you should use it, check out our introduction.

Releasing vexide 0.7.0

As mentioned before, this release is more focused on polishing and documenting existing code within vexide over announcing new features.

We generally think that vexide is close to feature-complete. Our API surface and device support currently exceeds PROS and nearly matches VEXcode, but we’re still a long way from complete API stability. The hope is that this release is at least a step in that direction.

Module Restructure

vexide 0.7.0’s modules have been reorganized to be more consistent and generally less of a pain to type out. You can observe these changes in our API docs. Notice how many modules have now been moved to the top-level:

0.6.00.7.0

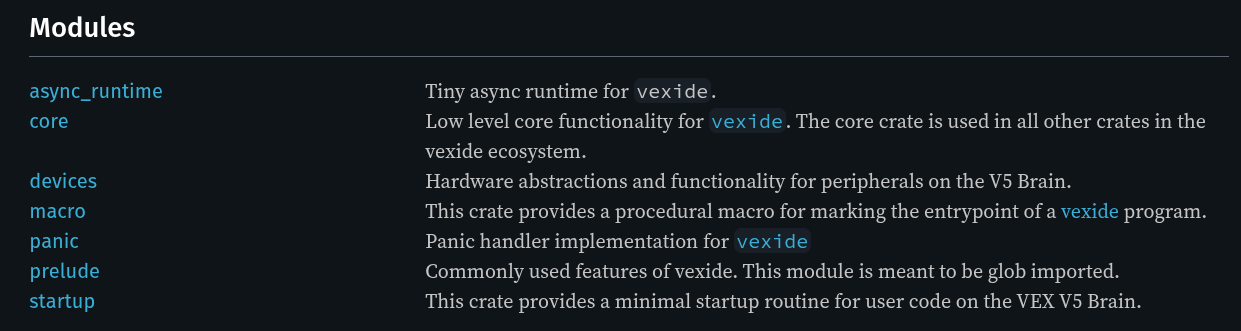

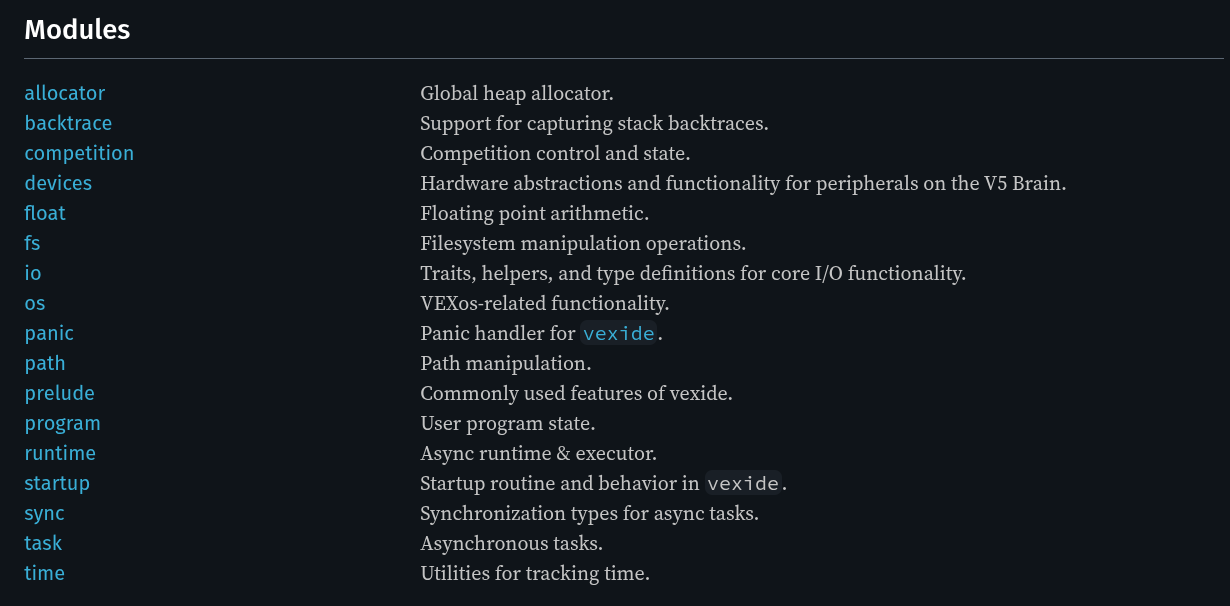

top-level modules in vexide 0.6.0top-level modules in vexide 0.7.0

This makes finding things in vexide easier and saves your fingers from typing out a 3-mile long use-path.

Most significantly, the core and async_runtime modules are gone. Rather than typing out vexide::core::time::Instant or vexide::async_runtime::time::sleep, you can now use the top-level time module:

use vexide::{    core::time::Instant,    async_runtime::time::sleep,};use vexide::time::{Instant, sleep};

This refactor also comes with many additions to our API reference, which now provides detailed examples and explanations in most of the top-level modules.

Directory Reading

vexide programs can now read folder entries off of the SDCard with the new read_dir function.

for entry in vexide::fs::read_dir("somefolder") {    println!("{:?}", entry.path);}

This function was somewhat of a pain to implement due to technical limitations in VEXos. The PR adding this functionality to PROS has been held up for two years (!!!) due to this reason.

New GPS Sensor API

The GpsSensor API has recieved an overhaul in 0.7.0. Heading and angle sensing functionality has been integrated into the sensor, and the separate GpsImu struct has been completely removed. Here’s a quick example of the new API:

{...}#![no_std]#![no_main]use vexide::prelude::*;
#[vexide::main]async fn main(peripherals: Peripherals) { // Assume we're starting in the middle of the field facing upwards, with the // sensor's mounting point being our reference for position. let gps = GpsSensor::new( peripherals.port_1, Point2 { x: 0.0, y: 0.0 }, Point2 { x: 0.0, y: 0.0 }, 0.0, ); if let Ok(position) = gps.position() { println!( "Robot is at x={}, y={} facing {} degrees", position.x, position.y, gps.heading().unwrap_or_default(), ); }}

Graphics Drivers

The slint and embedded-graphics drivers have been removed from the main vexide runtime and split into separate repositories due to licensing concerns.

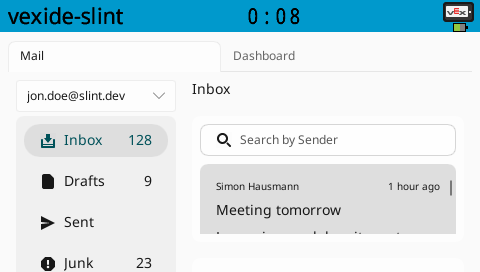

email client written in slint

Using the brain for its intended purpose — email.

If you were using these features previously, you’ll need to migrate to these new crates by adding them to your Cargo.toml:

cargo add vexide-slint

or…

cargo add vexide-embedded-graphics

Generic Serial Refactor

The SerialPort API, which allows you to use a smartport as a generic serial tranciever got a refactor this release.

{...}#![no_std]#![no_main]use vexide::prelude::*;
#[vexide::main]async fn main(peripherals: Peripherals) { let mut serial = SerialPort::open(peripherals.port_1, 115200).await;
SerialPort::open is now an async function, which prevents a race condition bug that caused this function to fail sometimes in earlier releases.
_ = serial.write(b"yo");}

Important Bug Fixes

  • SDCard file write operations will now be synced when dropped out of scope.
  • Three-wire Encoders had a bug in them where they could sometimes be configured on the wrong port pairing or be randomly reset back to 0 degrees. That bug has been fixed.
  • The reliability of the println!() macro has been significantly improved this release when trying to print large amounts of data at once.
  • Writing to the controller screen or rumbling the controller previously had a bug that would sometimes cause a crash. That has been fixed.

Announcing autons - Auton selectors for vexide!

autons is a new library built for vexide that allows you to use and build auton selectors for vexide. It currently has builtin support for a simple auton selector.

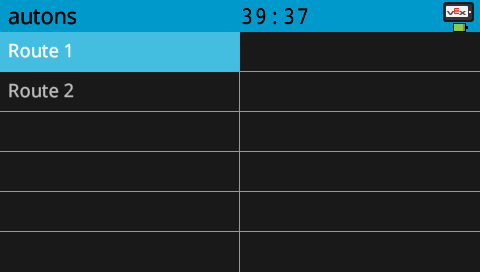

simple auton selector

The goal of autons is not to offer just a single type of auton selector, but rather provide a framework for people to make their own. The API allows for people to build their own selectors around the Selector trait, making it easy to swap between different auton selectors while sharing a standard API.

{...}#![no_std]#![no_main]extern crate alloc;use autons::{ prelude::*, simple::{route, SimpleSelect},};use vexide::prelude::*;
struct Robot {}impl Robot { async fn route_1(&mut self) {} async fn route_2(&mut self) {}}impl SelectCompete for Robot { async fn driver(&mut self) { // Driver stuff goes here }}#[vexide::main]async fn main(peripherals: Peripherals) { let robot = Robot {}; robot .compete(SimpleSelect::new( peripherals.display, [ route!("Route 1", Robot::route_1), route!("Route 2", Robot::route_2), ], )) .await;}

autons can be added as a dependency in any existing vexide project using the following command:

cargo add autons

Community Showcase

These are some new packages made by our community using vexide that we’d like to recognize!

vexide-motorgroup

vexide-motorgroup provides a MotorGroup type for vexide similar to the one found in VEXcode and PROS. vexide intentionally doesn’t include motor groups, since we believe that users should have control over the underlying collection and error handling strategy, but if you need something quick and easy then this library is for you!

veranda

veranda is a library that provides a random number generation (RNG) entropy source for vexide projects for use with the rand crate. This is useful for anything involving random numbers or non-determinstic execution (such as particle filters).

shrewnit

shrewnit is a new units library that allows you to strongly type units of measure at compile time in stable rust. This library isn’t specific to vexide, but is developed by one of our maintainers with vexide and its projects in mind.

doxa-selector

This is an auton selector made by team 99484 developed for vexide using the slint GUI library. Check it out on GitHub.
