Happy Thanksgiving everyone! we’ve got some exciting releases to announce. Let’s recap the progress that’s been made over the last few months.

vexide 0.5.0

We’ve published the next major release of vexide—version 0.5.0—to crates.io today. As always, the full changelog can be found here.

0.5.0 is a very significant update to the vexide runtime, being likely the largest update yet. This version heavily focuses on polishing vexide’s device APIs (think motors, sensors, etc…) as well as the surrounding documentation with them. It also introduces several new devices and fixes some bugs in the existing ones.

Massive Improvements in API Documentation

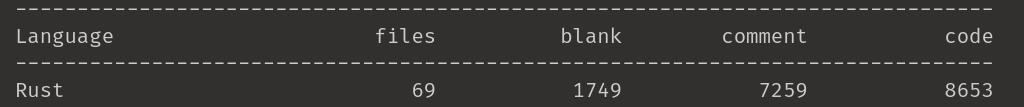

A large amount of time on this release was spent improving our API documentation. In fact, nearly half of vexide’s line count is comments now. Most rustdoc methods and modules in the vexide-devices crate have been completely rewritten with updated and detailed information. Our end goal (which we haven’t reached yet!) is matching the documentation standards found in the Rust standard library.

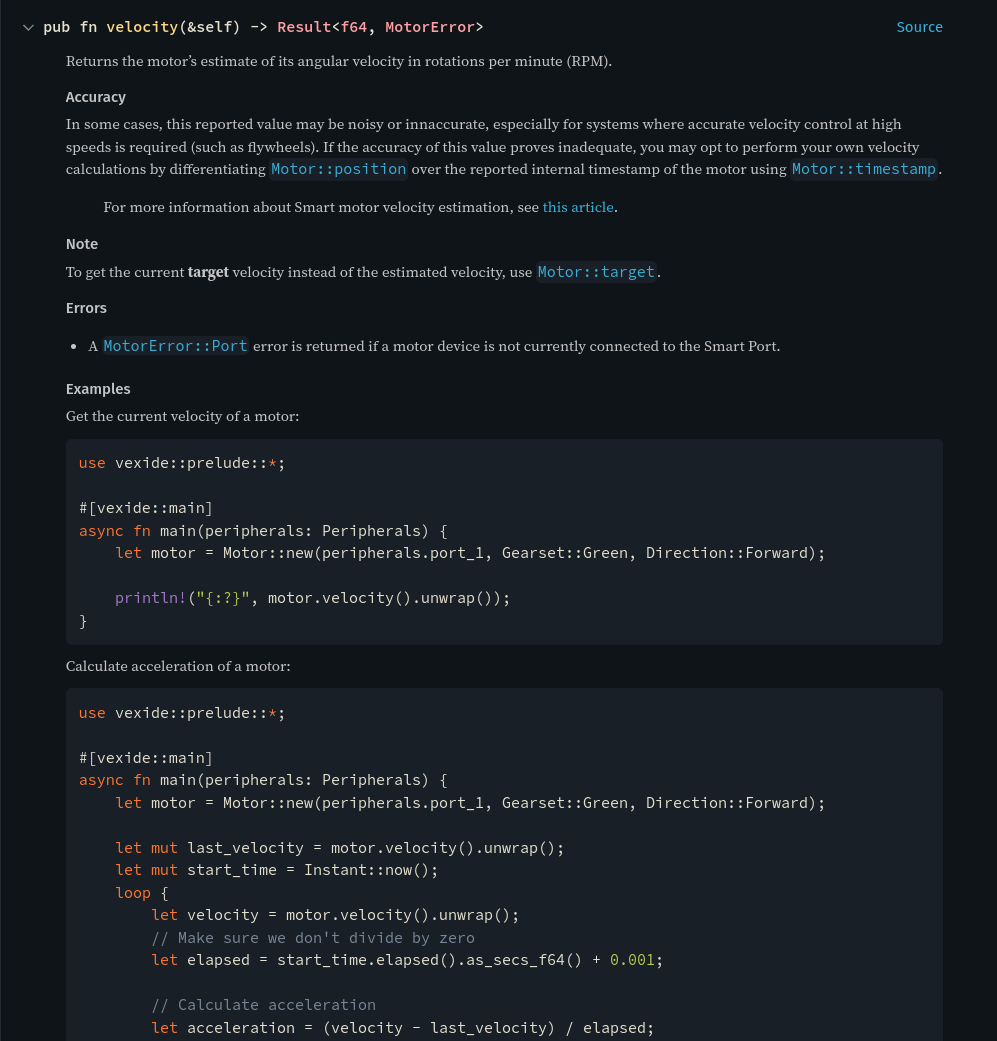

To start, almost all device methods now have examples showcasing how they can be used, as well as a section describing any causes of possible errors that can be returned by the method. Here’s an example:

0.4.0	0.5.0
	(this goes down further)

These efforts combine information gathered from many sources, including VEX’s official docs, the BLRS wiki, random jpearman posts from 5 years ago, and word-of-mouth from discord servers nobody’s ever heard of. Our hope is that having all this information in one place will make it less of a headache for you to find compared to the rather scattered state of things right now.

New Controller API

The Controller API has recieved a facelift. Controller state is now all gathered through a single state method, which avoids the mess of handling individual errors for each controller button.

{...}
#![no_std]#![no_main]use vexide::prelude::*;async fn main(peripherals: Peripherals) {    let robot = Robot {        controller: peripherals.primary_controller,        intake: Motor::new(peripherals.port_1, Gearset::Blue, Direction::Forward),    };    robot.compete().await;}struct Robot {    controller: Controller,    intake: Motor,}
impl Compete for Robot {    async fn driver(&mut self) {        loop {            let state = self.controller.state().unwrap_or_default();            if state.button_l1.is_pressed() {                _ = self.intake.set_voltage(12.0);            } else if state.button_l2.is_pressed() {                _ = self.intake.set_voltage(-12.0);            } else {                _ = self.intake.brake(BrakeMode::Coast);            }            sleep(Motor::UPDATE_INTERVAL).await;        }    }}

We’ve also introduced new ways to handle press/release events on buttons with the is_now_pressed and is_now_released getters. These let you easily implement toggle buttons in your driver control code.

let state = self.controller.state().unwrap_or_default();if state.button_a.is_now_pressed() {    _ = self.clamp.toggle();}if state.button_b.is_now_released() {    println!("Button B was just released!");}

Furthermore, you can now get the current state of the controller’s power button (for whatever reason you might want to do that.) This isn’t especially practical, since the power button will still kill the program when held for a short period of time, but hey, we support it anyways!

if state.button_power.is_now_pressed() {    println!("Power button on primary controller was pressed!");}

SDCard & Filesystem

vexide finally has a filesystem API! You can now read and write to the Brain’s micro-SDCard slot. Our vexide::core::fs module provides a limited subset of the standard library’s std::fs API for this.

{...}
#![no_main]#![no_std]extern crate alloc;use alloc::string::String;use vexide::prelude::*;use vexide::core::fs::File;
#[vexide::main]async fn main(_peripherals: Peripherals) {    // Create a new file and write some data to it.    let mut file = File::create("foo").unwrap();    file.write_all(b"bar").unwrap();    file.flush().unwrap();    // Reopen that file in read mode to read the data we just wrote to it.    let mut file = File::open("foo").unwrap();    let mut buf = [0; 3];    file.read(&mut buf).unwrap();    // Print out the data we just got off the SDCard.    let buf = String::from_utf8(buf.to_vec()).unwrap();    println!("{buf}");}

Do note that this API is not fully featured due to (intentional) limitations in how VEXos handles its filesystem. Notably:

• Files cannot be opened as read and write at the same time (only one). To read a file that you’ve written to, you’ll need to drop your written file descriptor and reopen it as readonly.
• Files can be created, but not deleted or renamed.
• Directories cannot be created or enumerated from the Brain, only top-level files.

AI Vision Support

The first of our new devices is VEX’s new AI Vision Sensor, which is an upgrade over their older Pixy2-based vision sensor with added support for onboard AI and AprilTag detection models.

Here’s an example of its API in use on vexide 0.5.0:

{...}
#![no_main]#![no_std]use vexide::prelude::*;
#[vexide::main]async fn main(peripherals: Peripherals) {    let mut ai_vision = AiVisionSensor::new(peripherals.port_1);    // Configure the sensor to detect green colors.    ai_vision        .set_color(            1,            AiVisionColor {                rgb: Rgb::new(55, 125, 70),                hue_range: 10.0,                saturation_range: 0.2,            },        )        .unwrap();    loop {        for object in ai_vision.objects().unwrap() {            println!("{:?}", object);        }        sleep(AiVisionSensor::UPDATE_INTERVAL).await;    }}

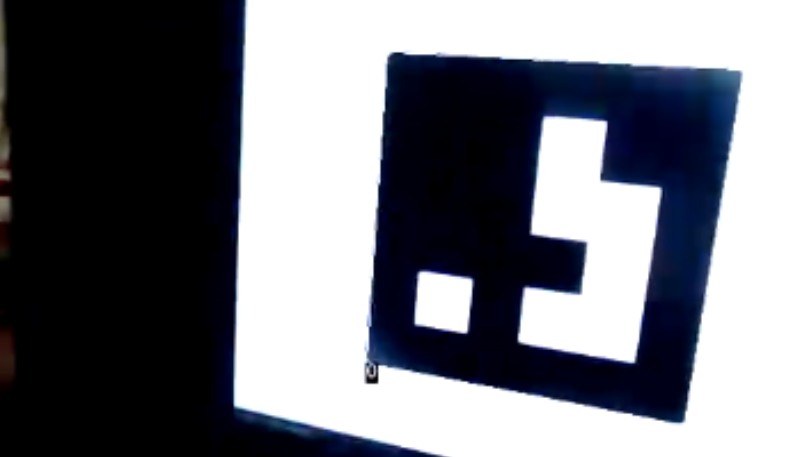

And here it is detecting an AprilTag from the tag16h5 family during our testing.

V5 Electromagnet Support

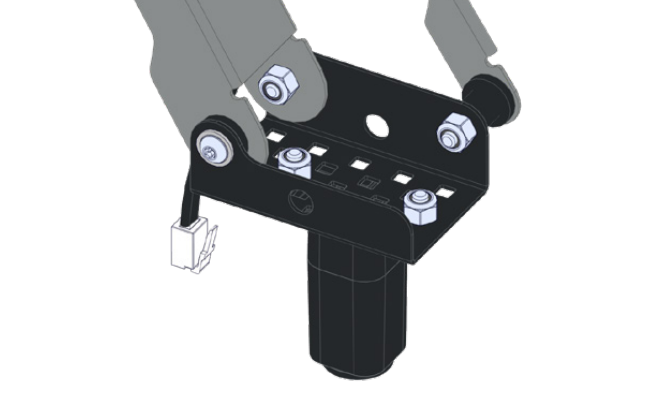

For all two of you people on this planet who has one of these, vexide now supports the V5 Workcell’s electromagnet device. Note that this device is not competition legal at all, and is also impossible to obtain without buying a discontinued kit for several thousand dollars.

{...}
#![no_main]#![no_std]use vexide::prelude::*;use core::time::Duration;
#[vexide::main]async fn main(peripherals: Peripherals) {    let mut electromagnet = Electromagnet::new(peripherals.port_1);        _ = electromagnet.set_power(1.0, Duration::from_millis(500));
Set the magnet to full power for half a second.
}

New ADI Devices (and old ADI fixes!)

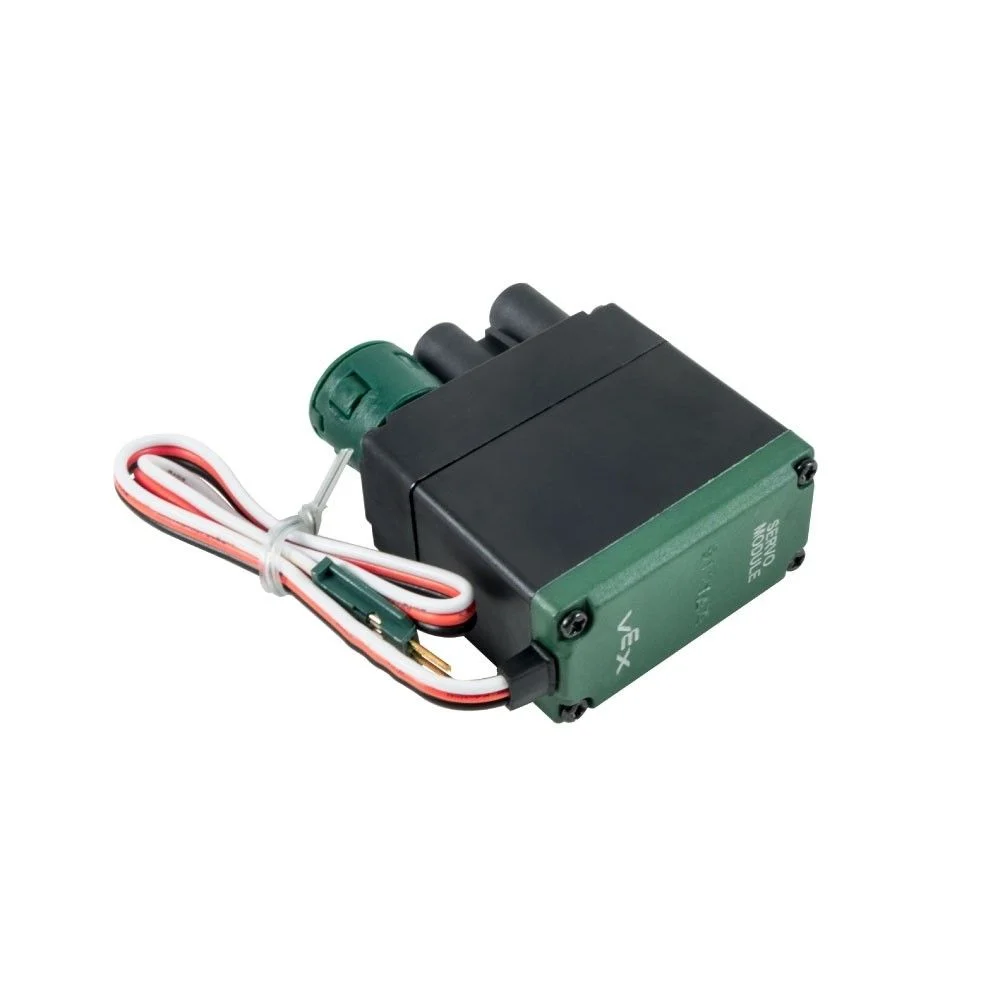

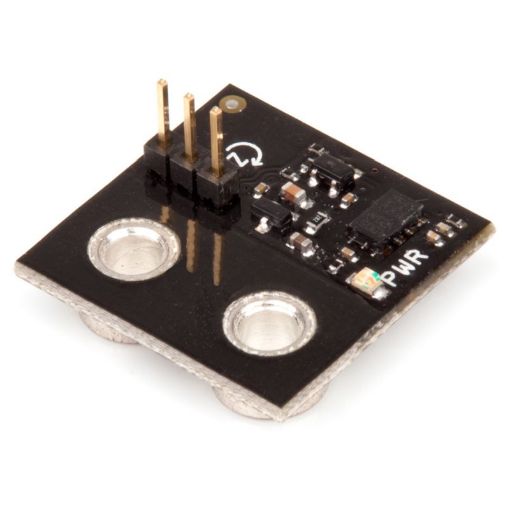

We’ve added support for two new ADI devices — AdiGyro and AdiServo for controlling the old Yaw Rate Gyroscope and Three-wire Servo hardware.

AdiGyro	AdiServo

The old gyro is even still competition legal! (though you should probably just use an InertialSensor…)

EXP (5.5W) Smart Motors

vexide’s Motor API now has explicit support for 5.5W smart motors. You can create one using the Motor::new_exp method:

let motor = Motor::new_exp(peripherals.port_1, Direction::Reverse);

You can also get a motor’s type using Motor::motor_type and maximum voltage with Motor::max_voltage:

fn what_motor(motor: Motor) {    match motor.motor_type() {        MotorType::V5 => println!("This motor is an 11W Smart Motor."),        MotorType::Exp => println!("This motor is an 5.5W Smart Motor."),    }    // 8.0 on 5.5W, 12.0 on 11W    println!("Maximum voltage:" motor.max_voltage());}

Panic Hooks

vexide now supports registering a hook for its program panic handler. If your program crashes for whatever reason, you can register code to run before vexide exits your program. This can be useful for logging purposes and error reporting.

Here’s an example hook that writes the last panic message to a panic.log file on the SDCard using our new fs API:

{...}
#![no_main]#![no_std]use vexide::prelude::*;use vexide::core::fs::File;use core::time::Duration;
#[vexide::main]async fn main(_peripherals: Peripherals) {    vexide::panic::set_hook(|info| {        if let Ok(mut file) = File::create("panic.log") {            writeln!(file, "{:?}", info).unwrap();        }        // Call the default panic hook to print the panic message to the serial        // console and put it on the display        vexide::panic::default_panic_hook(info);    });    println!("Hook set. Crashing in one second.");    sleep(Duration::from_secs(1)).await;    panic!("AHHHHH!");}

New Display Drawing Features

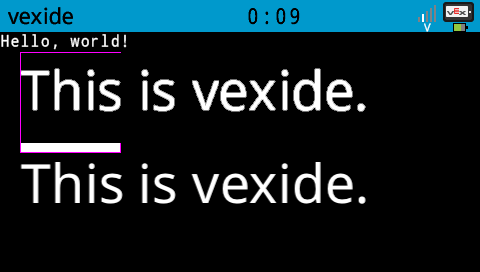

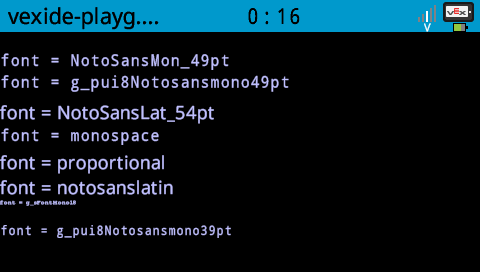

vexide’s Display API now supports basic font customization and sizing options. You can also now specify a background color for the text.

{...}
#![no_main]#![no_std]use core::{fmt::Write, time::Duration};use vexide::{    devices::display::{Font, FontFamily, FontSize, Rect, Text},    prelude::*,};
#[vexide::main]async fn main(peripherals: Peripherals) {    // We can get the screen directly from peripherals because it is always connected to the Brain.    let mut display = peripherals.display;    let text = Text::new("Nice to see you!", Font::default(), [80, 40]);    // Draw the text on the display in cyan with a yellow background color.    display.draw_text(&text, Rgb::new(0, 255, 255), Some(Rgb::new(255, 255, 0)));    // You can use varying text sizes and fonts.    let text = Text::new(        "This is vexide.",        Font::new(FontSize::new(2, 3), FontFamily::Proportional),        [21, 84],    );    // Draw the text white, with a transparent background.    display.draw_text(&text, Rgb::new(255, 255, 255), None);    // Font sizes can be created with a fraction or a float    let size = FontSize::from_float(0.333).unwrap();    println!("Font Size: {:?}", size);    let size = FontSize::try_from(1.4).unwrap();    println!("Font Size: {:?}", size);}

evian

evian is an experimental autonomous controls library for vexide that I (Tropical) been working on.

The idea behind evian is that it will serve as a basis for further controls work in vexide. The library is highly extensible and makes full use of the Rust type system, allowing you to write motion algorithms that are generic across both drivetrain configurations and localization algorithms. The idea behind evian is not to offer a “free odometry and auton library”, but rather to provide a basis for people to develop their own cool things on top of it.

evian’s architecture is designed around extensibility. The base Drivetrain struct is very simple:

/// A mobile robot capable of measuring data about itself.#[derive(Default, Debug, Eq, PartialEq, Hash)]pub struct Drivetrain<D, T> {    pub motors: D,    pub tracking: T,}

It holds a collection of motors and a system that track’s some kind of data about the robot (could be position, heading, wheel travel, anything really…) For example, if I had a tank drivetrain with tracking wheels and an IMU, i’d have a Drivetrain<Differential, PerpendicularWheelTracking>. We have a Differential (left/right) motor setup, and a PerpendicularWheelTracking system capable of tracking position, heading, and forward travel.

Motion algorithms are simply functions that take a mutable reference to our drivetrain struct and control it. For example, if we wanted to write a motion for our aformentioned differential drive robot, we can do this:

pub async fn my_cool_motion<T: TracksPosition + TracksHeading>(    &mut self,    drivetrain: &mut Drivetrain<Differential, T>,    some_input: f64,) {}

We could then move the robot using this function we just wrote:

my_cool_motion(&mut my_drivetrain, 10.0).await;

This is a motion that takes in a Drivetrain<Differential, T>, where T is any tracking system that happens to track the robot’s position and heading. This system is powerful, because motions specify exactly what they want through Rust’s type system. They can be extremely abstract (even abstract across drivetrain types), or extremely specific in their needs, which allows people to do things like write their own unique tracking systems and motion algorithms while remaining compatible with evian’s ecosystem.

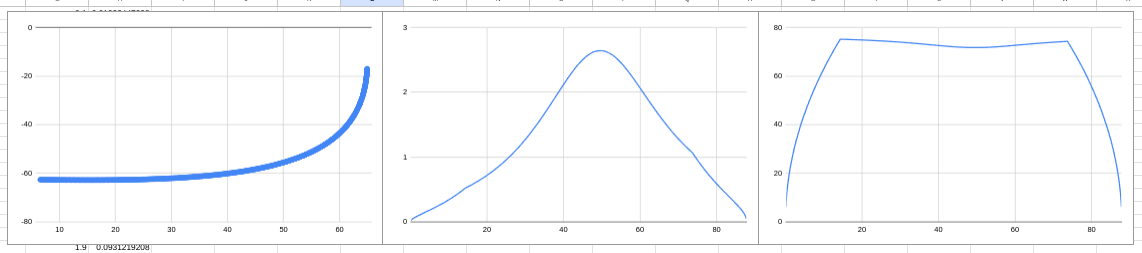

Work is also being put into a high-performance 2D trajectory generator (2D motion profiling), with planned support for a RAMSETE trajectory follower.

This is largely a port of Cooper’s Real-Time-Motion-Profiling project, with initial results showing extremely promising performance (sub-3 millisecond trajectory generation).

Hydrozoa

Hydrozoa is a WebAssembly interpreter that runs on the Brain. Tons of programming languages can be compiled to WASM and then run on the Brain using Hydrozoa. Lewis made Hydrozoa and is currently working on Kotlin and Java tooling and libraries for Hydrozoa. In the future, languages like Java, Kotlin, Javascript, Typescript, Go, C#, Lua, and many more might be usable for VRC!

Although it’s not fully complete, you can already try running Java on your Brain right now! To get started, clone our Hydrozoa Java template. Next, install the Hydrozoa CLI tool:

cargo install --git https://github.com/vexide/hydrozoa-cli.git

Finally, connect to your Brain and upload your program with gradle:

./gradlew upload

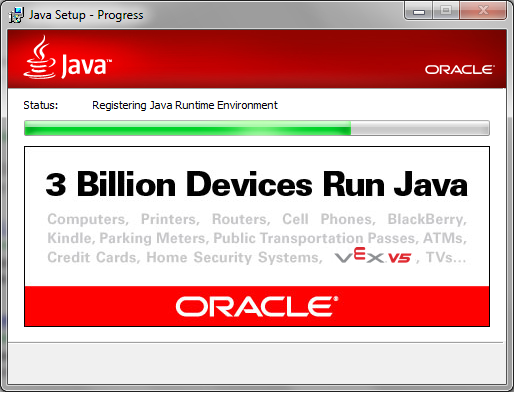

And that’s it! Java is now running on your Brain!

New Contributors

• zabackary (VRC team 99484) for their excellent work on implementing Panic Hooks, fixes to our synchronization primitives, various API cleanups, and help testing our new AdiGyro device.
• Jace, for their patch submission via email (!!) fixing a bug in our InertialSensor and GpsImu APIs.

Thanks again for your contributions!
